Product Details
- ONLY ℃ Celsius display, If you looking for ℉ Fahrenheit display, please search B01LQ8TPDC.
- ITC-100VH --- One SSR output + One Relay Alarm Output; AC100-240V
- Multiple temperature sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
- PID and ON/OFF Control Mode with high standard self-adjust function
- Self-adjusting function and intelligent control of the instrument to ensure the long-term stability
Specification
One SSR output + One Relay Alarm Output; AC100-240V;
- Front Panel Dimension: DIN 48mm(W)X48mm(L)
- Power Supply Voltage: AC 100-240V 50/60Hz
- Operating voltage range： 85～110% Rated voltage
- Power Consumption： Approx. 5VA（100～240VAC）
- Display Accuracy: ±0.2%FS 0.1oC（＜1000oC）；1oC（≥1000oC）
- Period of Sampling： 0.5S
- Temperature Compensation： 0-50oC
- Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
- Environmental Conditions: -10～55oC（no icy or condensation）, RH 35-85% Humidity
- Storage Temperature: -25～65oC（no icy or condensation）
- Data Storage: 10year Cutout size: 45x45mm
- Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple:
Temperature rang :0-400 C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass
40A SSR Specifications:
Load Voltage: 24-380VAC
Load Current: 40A
Input Voltage: DC 3-32V
Black Heat Sink
High reliabley, high efficient and long lifespan
Root size : 80.39mm * 50mm
Top size: 60mm * 50mm
Hight: 44mm
1 Year Warranty
25A DA SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC
Load Current: 40A
Input Voltage: DC 3-32V

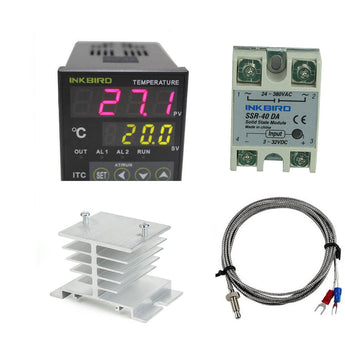

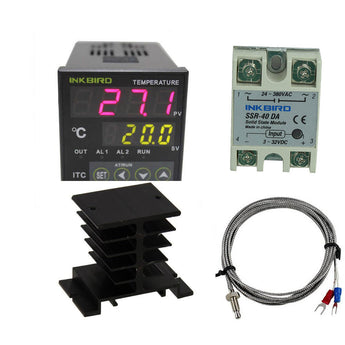

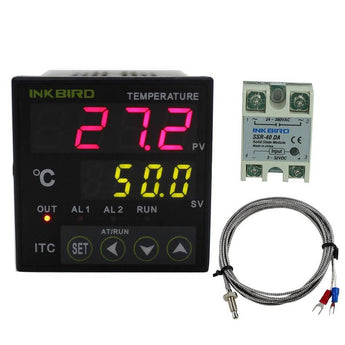

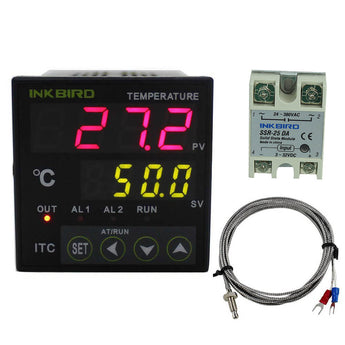

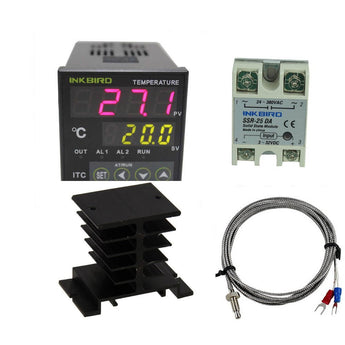

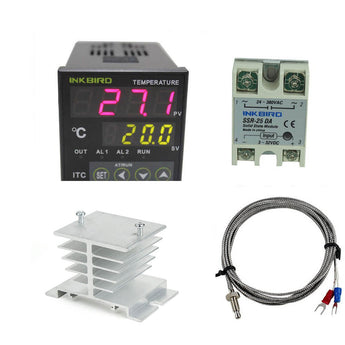

Pacakge:
1x 25A DA SSR
Pacakge:
1x Inkbird ITC-100VH Controller

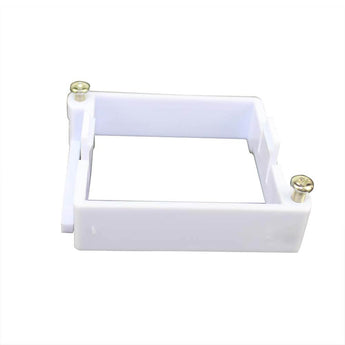

1x Mounting bracket
1x 25A/40A SSR
1x K Sensor
1 x Manual
