PID Temperature Controller ITC-100

The INKBIRD ITC-100 series has ITC-100VH and ITC-100RH. ITC-100VH has one SSR output+ one relay alarm output. ITC-100RH has one relay output+ one relay alarm output. They are widely used in chemical industry, medical industry, product industry, machinery industry, greenhouse farming, agricultural planting and etc.
$25.99

*The final price is subject to Amazon.

Main Features

Available models:

ITC-100VH --- One SSR output + One Relay Alarm Output; AC100-240V.

ITC-100RH --- One Relay output + One Relay Alarm Output; AC100-240V.

Main Features:

Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm

Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)

Power Supply Voltage:    AC 100-240V ±10% 50/60Hz

Main Output: Voltage Pulses Output (ITC-100VH):  DC 12V, 30mA;

Main Output: Relay Contact Output (ITC-100RH):  AC250V 3A (Resistive load) ON/NC.

Alarm 1 AC250V 3A (Resistive load) ON/NC

High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS

PID and ON/OFF Control Mode, High Standard Self-adjusting Function

Multiple Outputs and Alarm Modes

Build-in Adjustable Digital Filter Reduce Interference

The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability

High Luminance, 0.39” height LED display, Anti-glare panel

Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption


Technical Support Materials:

Please click to download the technical support materials such as user manuals and product APPs Click Here

Review Video:

  • Front Panel Dimension : DIN 48mm(W)X48mm(L)
  • Power Supply Voltage : AC 100-240V 50/60Hz
  • Operating voltage range : 85~110% Rated voltage
  • Power Consumption : Approx. 5VA(100~240VAC)

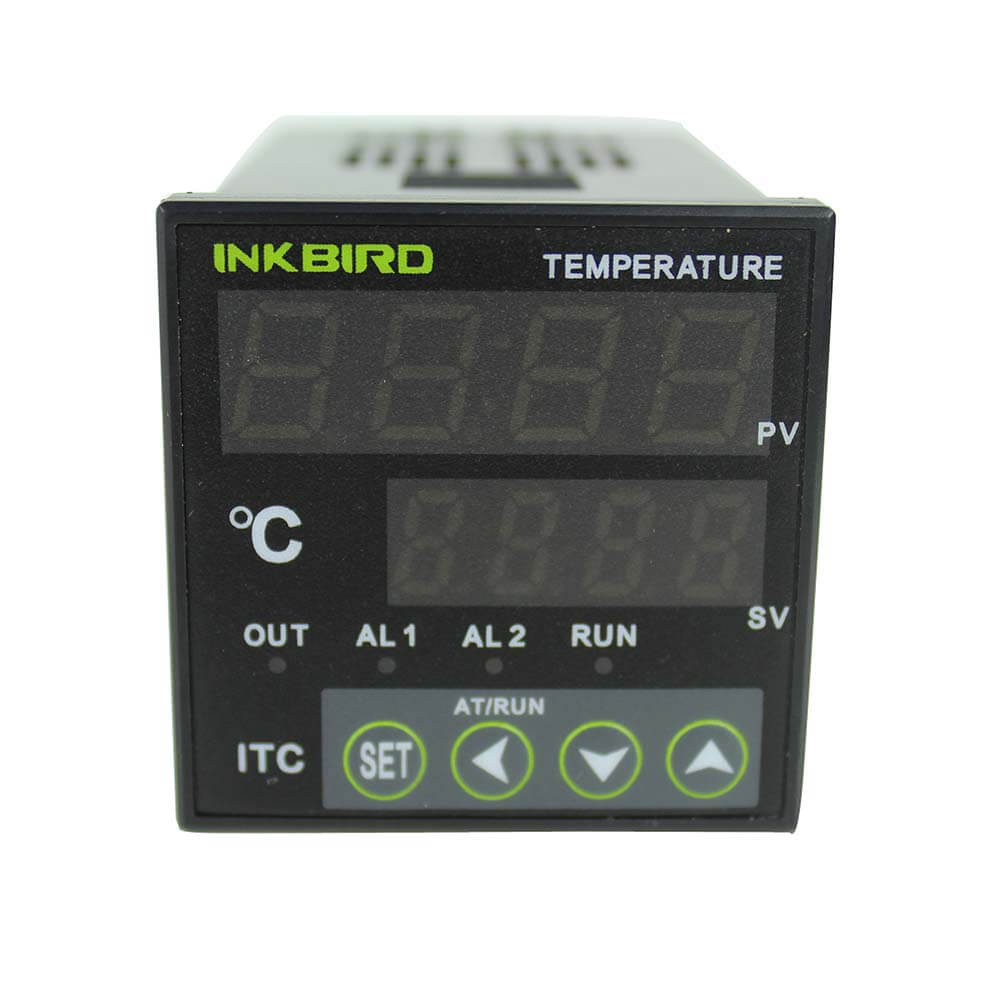

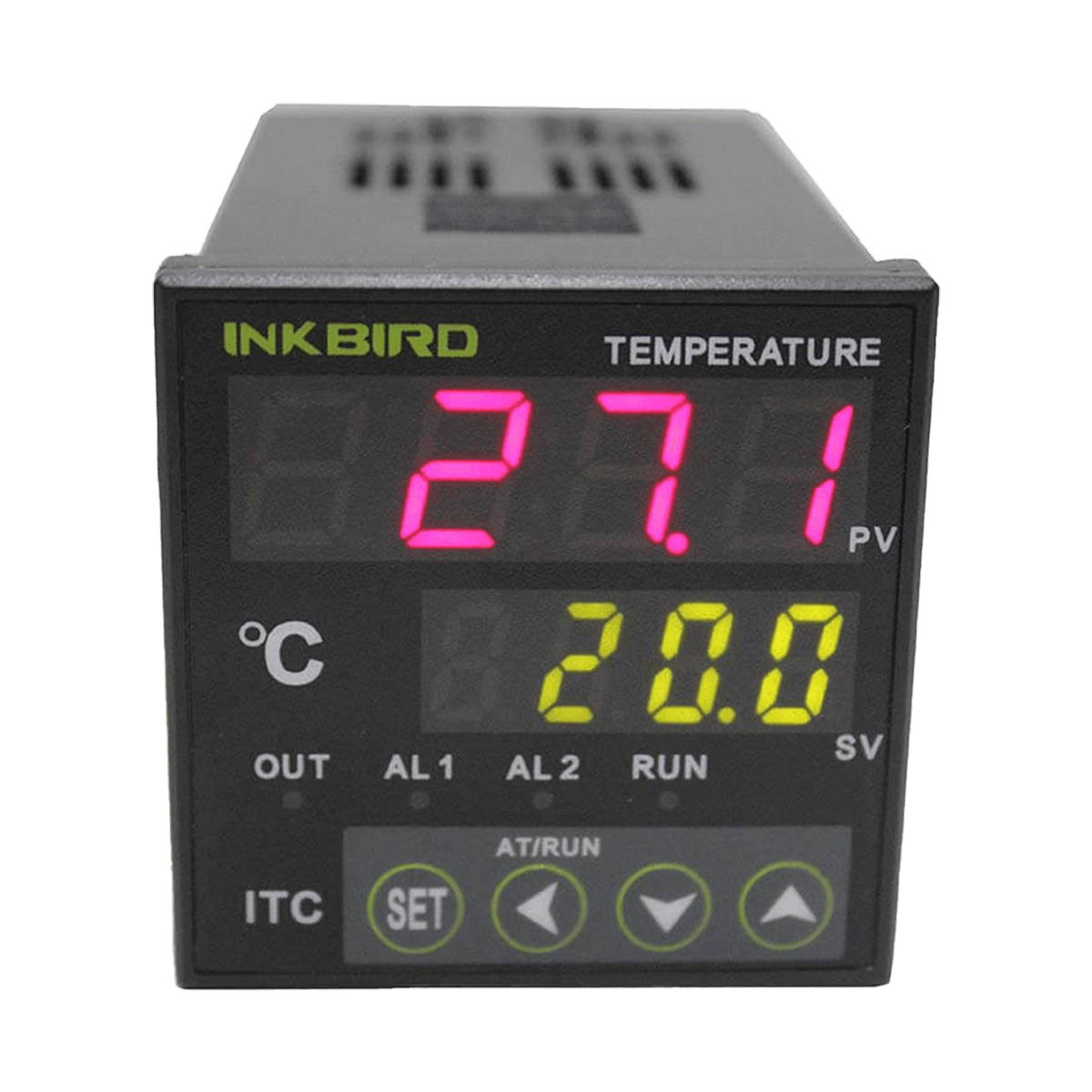

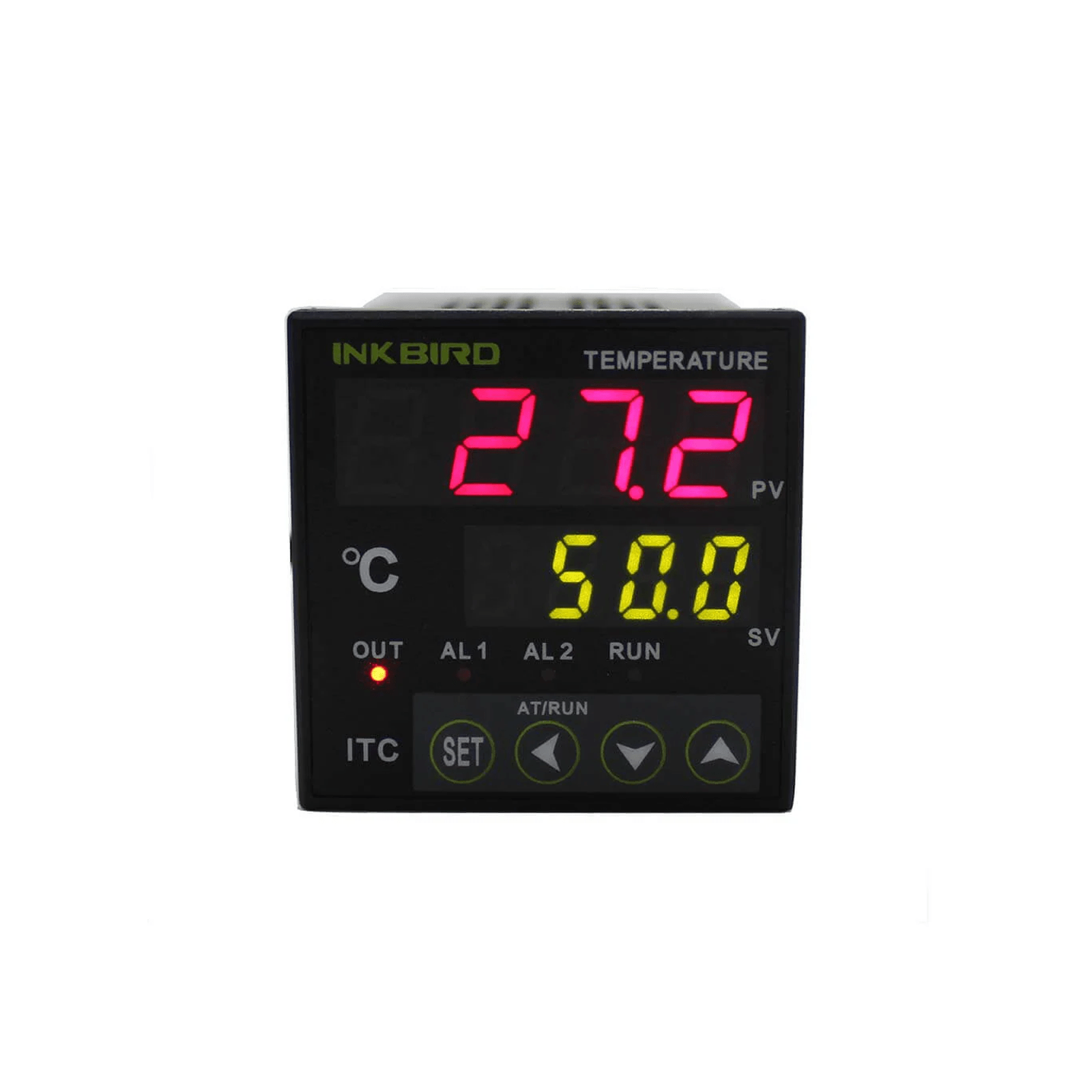

  • Character PV : 4 digital 9.9mm height Red LED Letters
  • Character SV : 4 digital 8mm height Green LED Letters
  • Display Accuracy : ±0.2%FS 0.1ºC(<1000ºC);1ºC(≥1000ºC)
  • Period of Sampling : 0.5S
  • Temperature Compensation : 0-50ºC
  • Main Output:
  • Voltage Pulses Output (ITC-100VH) : DC 12V, 30mA;
  • Main Output:
  • Relay Contact Output (ITC-100RH) : AC250V 3A (Resistive load) ON/NC.
  • Alarm Output : AC250V 3A (Resistive load) ON/NC.
  • Life expectancy of Relay : Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
  • Weight : Approx. 140g
  • Environmental Conditions : -10~55ºC(no icy or condensation), RH 35-85% Humidity
  • Storage Temperature : -25~65ºC(no icy or condensation)
  • Data Storage : 10 year
  • Cutout size : 45x45mm

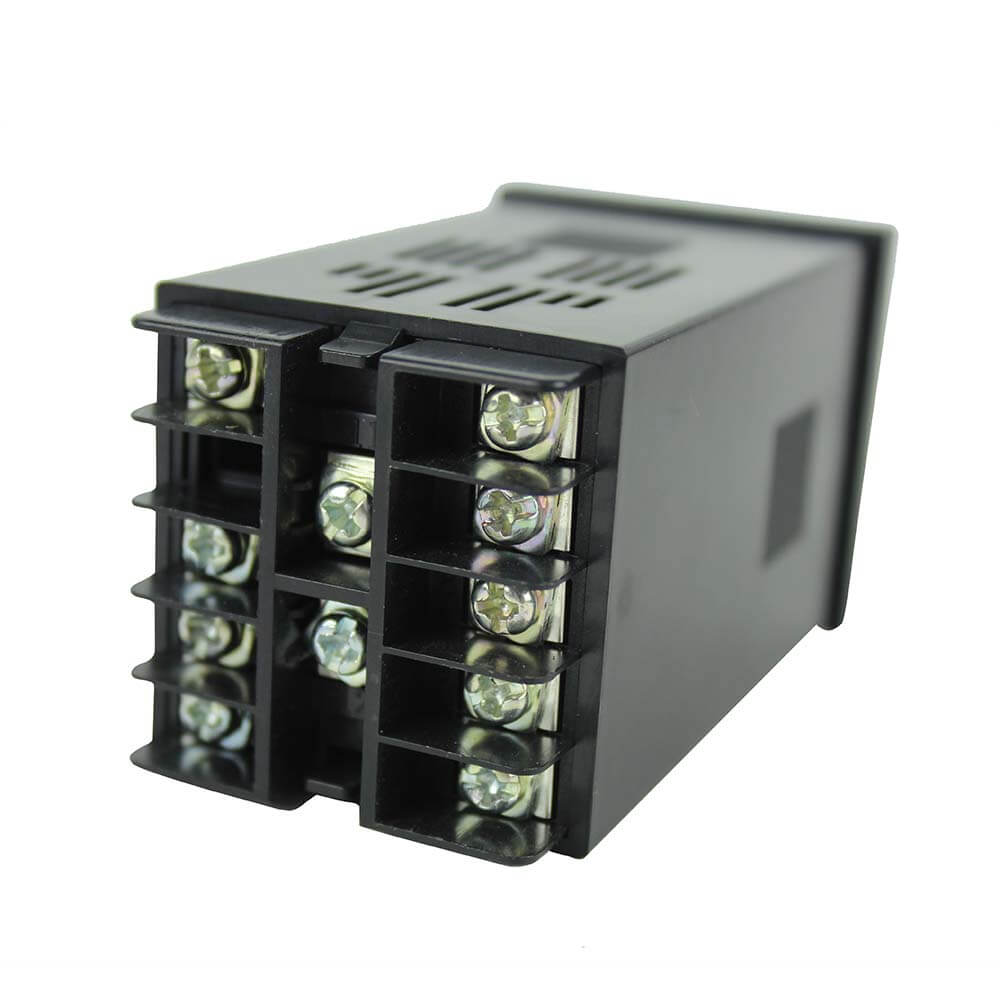

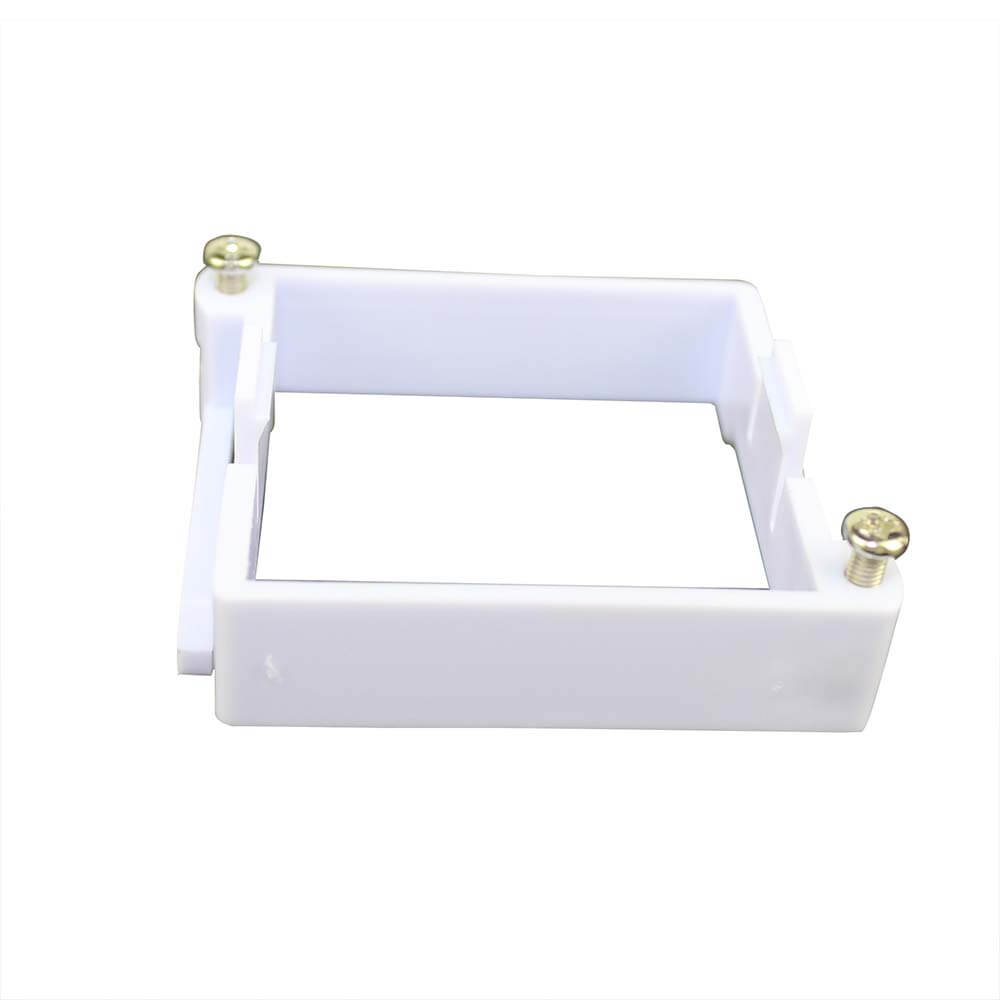

  • Mounting Method : Flush mounting and screw terminals
