Description
Intelligent and Quiet WiFi Inline Duct Fan IVC-001W
Note: 1. During installation, make sure all accessories are properly installed and that the fan structure can withstand the load generated by the fan running at full load.
2. Always disconnect the power supply before using the fan, even if it is powered off.
3. Before plugging in power, check that the voltage and frequency of the main power supply match the data on the product nameplate.
4. Do not remove the iron clips on the fan blades as they balance the fan.
5. This product is not suitable for children or frail people, unless supervised by a responsible person to ensure safe use.
6. Before using, clear out any debris that might have been sucked into the fan and clean up the ducts.
Product Details
● Inline duct fan with integrated temperature and humidity controller for grow tents and vertical farms
● WiFi-enabled smart controller for remote monitoring via smartphone anytime, anywhere
● Four operational modes - automatic, manual, timer and shutdown modes for versatile fan control
● Premium temperature and humidity probe for simultaneous detection
● High-performance 350 CFM airflow with adjustable fan speed for effective air ventilation
● Quiet operation at 32dB-A for minimal noise disruption in daily life
● Energy-efficient EC motor design for plug-and-play convenience, power savings, and cost reductions
● Temperature and humidity alarm functionalities along with calibration options
● Child-lock feature for prevention of misuse by children, safer in use
Highlights

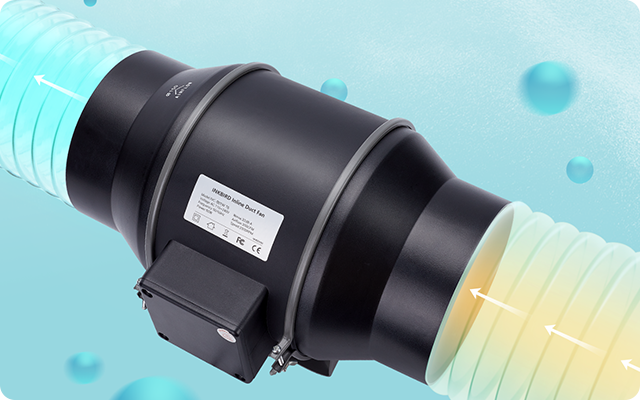

Powerful and Versatile Inline Duct Fan
With a maximum 350 CFM airflow and a quick fan speed of 2500 RPM, the IVC-001W delivers more efficient ventilation, deodorization, dehumidification, and temperature regulation.

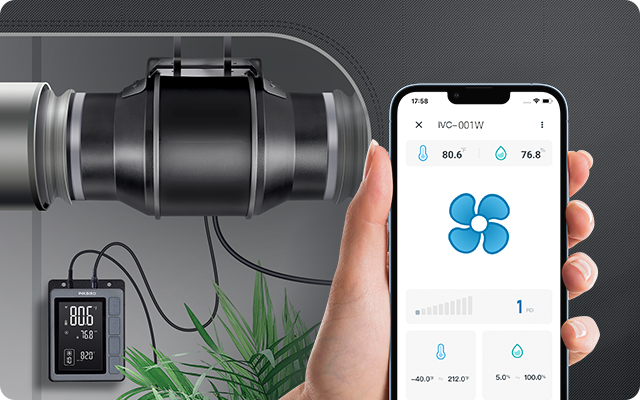

App Control from Anywhere
Through 2.4GHz WiFi connection, you can control and monitor this inline duct fan on the INKBIRD app, where you can also set limits, and view or export historical temperature and humidity data.
Automatic/Manual/Timer/Shutdown Modes
This smart inline duct fan offers 4 operation modes - Automatic/Manual/Timer/Shutdown. With the Timer mode, you can schedule up to 6 separate run times per day, with different wind speeds from 0 to 10.

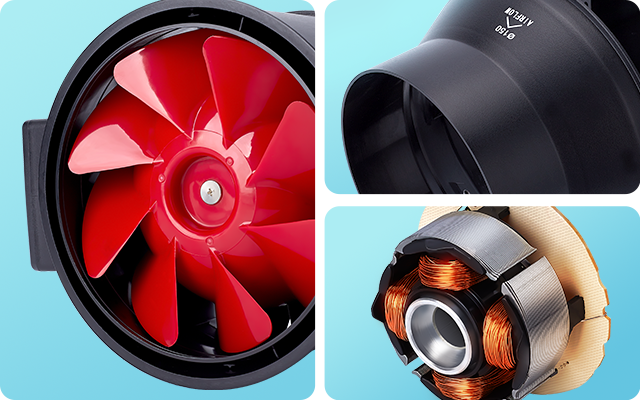

Efficient EC Motor in Robust Housing
This fan features a compact yet powerful EC motor that helps you save on both energy and costs. Plus, it's housing and blades are made of durable ABS plastic for long-lasting use.
How Does the Inline Duct Fan Work
The inline duct fan increases airflow and heat dissipation to:1. Maintain a clean air environment;2. Maintain adequate airflow in all areas.Not only does it have baisc temperature and humidity tiggers, but it also guides air through your target location. With a wind speed adjustment range of 0 to 10, it perfectly balance air volume, wind speed, and noise levels to suit your indoor or growing environment.

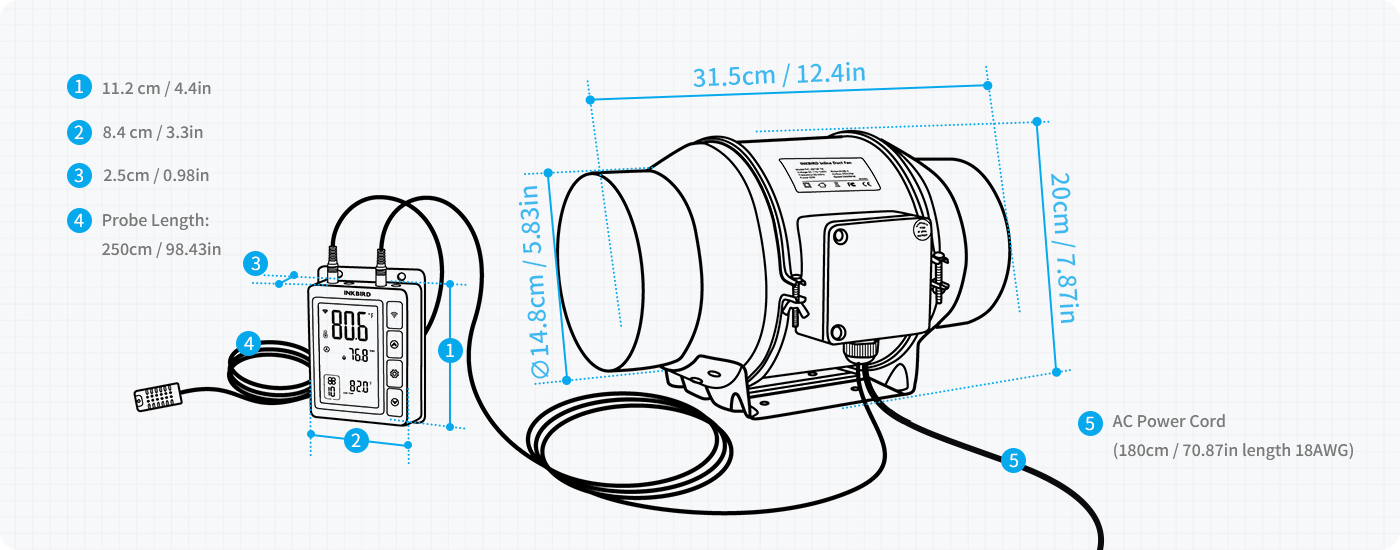

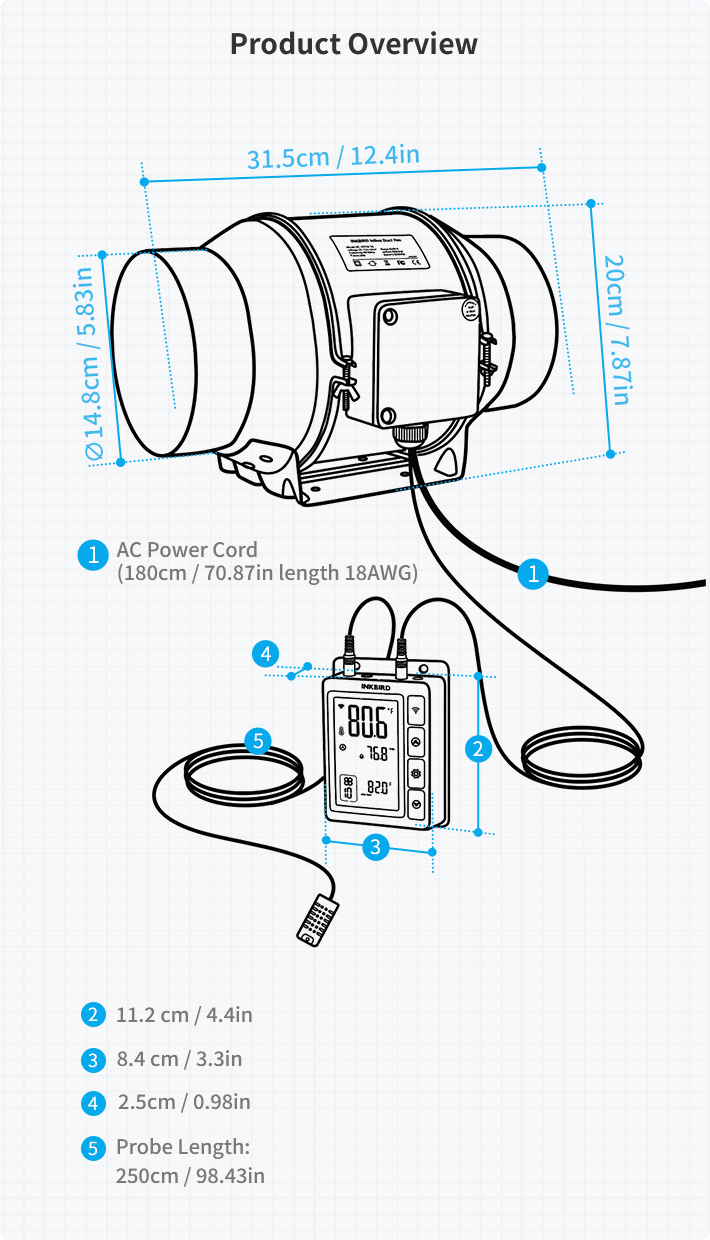

Product Overview
Specifications
| Model: | IVC-001W |
| Duct Fan Power: | 110~240VAC 50/60Hz |
| Controller Power: | DC 24V |
| Duct Fan Size: | 6 inches |
| Airflow: | 350CFM |
| Fan Speed: | 2500 RPM |
| Noise: | 32dB-A |
| Temperature Display Accuracy: |
0.1℃/℉(＜100℃/℉), 1℃/℉(>=100℃/℉) |
| Humidity Display Accuracy: | 0.1%RH |
| TRelative Humidity Range: | 0~100%RH |
| Relative Humidity Accuracy: | Typical value ±2%RH (at 25℃) |
| Temperature Range: | -40℉~212℉ / -40℃~100℃ |
| Temperature Measurement Accuracy: | Typical value ±0.3℃/±0.5℉ |
| Wind Speed Adjustment Range: | 0~10 grades |
| Working Temperature: | Room Temperature |
| Storage Condition: | Temperature：32℉~140℉/0℃~60℃ Humidity：20~80%RH (unfroze or condensation state) |
| AC Cable Length: | 4.92ft / 1.5 m |
| DC Cable Length: | 7.87ft / 2.4 m |
| Probe Length: | 2500 ±30 mm |
| Warranty: | 2 years |
| Package Contents: |
Duct Fan Unit: Inline Duct Fan *1, Duct Clamp *2, Wire Tie *6, Wire Tie Mount *6, Wood Screws *6, Wall Screws (Wall Hang) *6 Controller Unit: Smart Temperature Humidity Controller *1, Temperature-Humidity Probe *1, Machine Screws (Wall Mount) *2, Wood Screw (Wall Mount) *2, Wood Screws (Wall Hang) *2 |
Frequently Asked Questions
What is an inline duct fan?
Inline duct fans, often referred to as inline fans or centrifugal fans, are mechanical ventilation devices that serve multiple purposes. They can cool, heat, filter, and humidify the air in a space to help improve indoor air quality and circulation. These fans are ideal for grow rooms, commercial warehouses, office buildings, basements, attics, and other spaces that need to maintain specific temperature and humidity levels.
Does IVC-001W run all the time?
The operation of IVC-001W, whether it runs all the time or just occasionally, depends on the control system and your needs of the ventilation.
Can IVC-001W be used for kitchen grease removal?
Yes, the IVC-001W is suitable for kitchen grease exhaust. Make sure the fan size is appropriate for your kitchen's ventilation needs, and do not to expose it to temperatures over 140℉/60℃ for long periods of time.
Is the IVC-001W waterproof?
No, the IVC-001W is rated IP4X for dust and water resistance, so it is not waterproof.
